აღწერა

ინკუბატორის ტემპერატურის და ტენიანობის მაკონტროლებელი რელე

• 1. Temperature display range: 0 ~ 99.9 C
• 2. Temperature measurement accuracy: ± 0.1 C
• 3. Humidity display range: 0-99% RH
• 4. Humidity control accuracy: ± 3% RH
• 5. Output path: 7 Road ( over-temperature, temperature control, insufficient temperature, egg-left turning, egg right-turning, humidity control, alarm )
• 6. The maximum output load current: temperature control, insufficient temperature <= 8A/AC 220V, over-temperature,egg-left turning, egg right-turning, humidity control, alarm<= 1A /AC 220V
• 7. Number of egg-turning : Maximum record 999 times.
• 8. Cycle of egg-turning: from 0 to 999 minutes (factory set at 90 minutes)
• 9. Turn the eggs time: 0 to 999 seconds (factory set at 180 seconds)
• 10. Ventilation cycle : 0-999 minutes (factory set at 120 minutes)
• 11. Ventilation time: 0-999 seconds (Factory set at 30 seconds)
• 12. The measuring line length: 1.5 meters

Working conditions:

• 1. Working voltage: AC 160V ~ 240V, 50Hz
• 2. Relative humidity: less than 85%
• 3. Ambient temperature: -10 ~ 60 C

Package cntent:

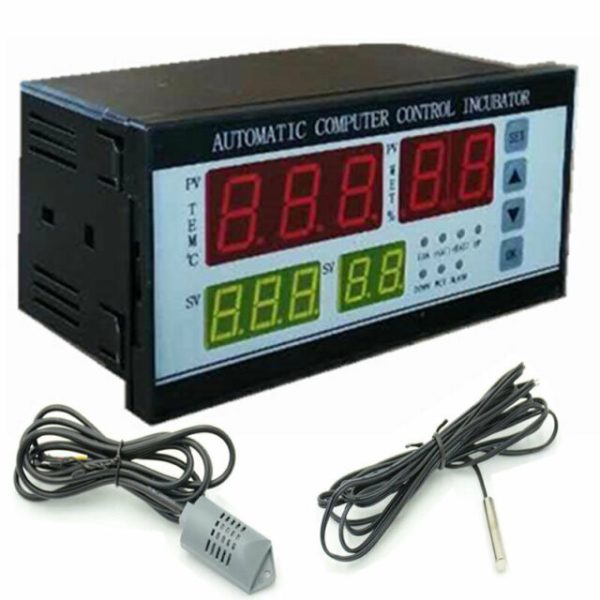

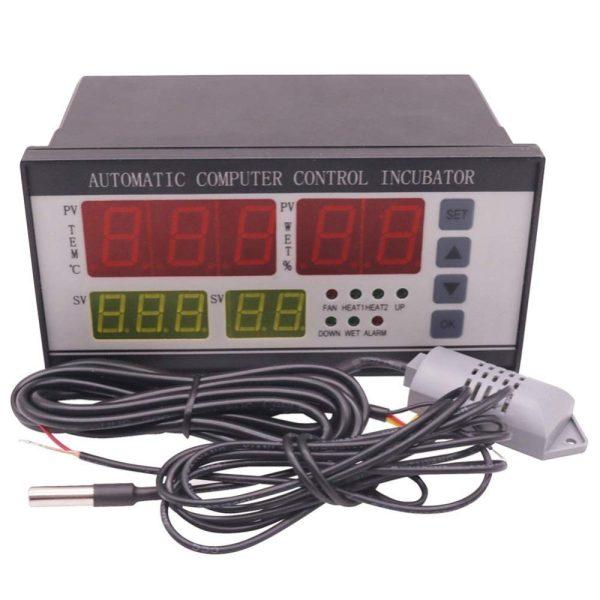

• 1 x XM-18 Incubator Controller Thermostat Hygrostat
• 1 x Temperature sensor
• 1 x Humidity sensor
